Description
The E46 Rear Subframe/Chassis Reinforcement Kit solves a problem that plagues the E46 3-series just as it did with the earlier E36 3-Series models. This kit is developed in-house at BimmerWorld and has more surface area and covers more of the problem areas than older competitor’s kits.
The rear subframe-to-chassis attachment points on the E46 are all failure prone and can rip away from the unibody after time. This can occur with regular road use, and if you drive your BMW E46 hard, then chances are very high that you’ll need to repair this area at some point in the future. We highly recommend doing this modification to any car that sees autocross, driving schools, and race use BEFORE the damage occurs. Our E46 reinforcement plates are a factory fit and can be welded in when subframe bushings are replaced.
This kit applies to all BMW E46 cars, including the M3.

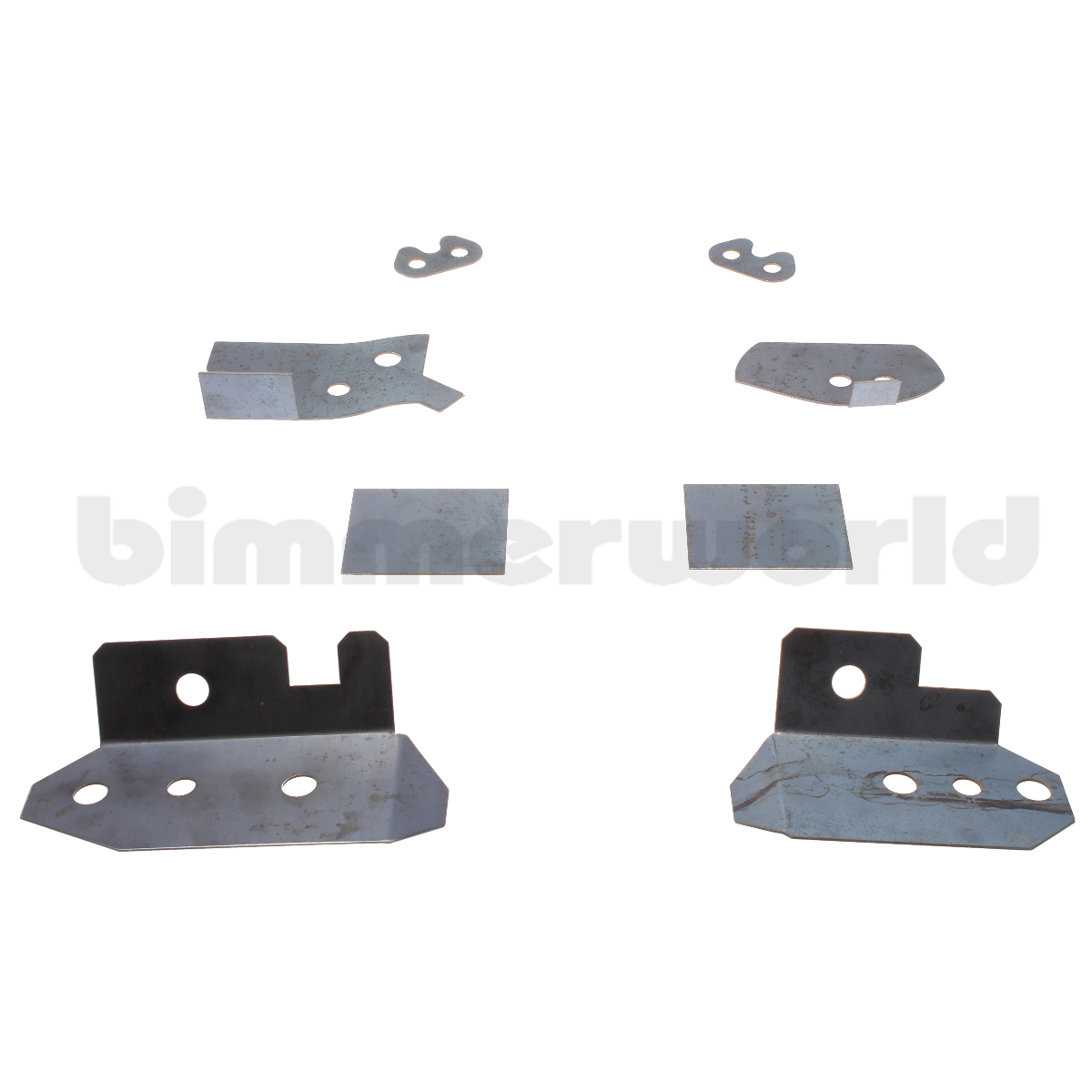

The E46 Rear Subframe/Chassis Reinforcement Kit consists of 4 main subframe mounting point reinforcements, spacers to realign the cross member, hardware, and plates to cover the access panels in the trunk.
- Welding is required
- Fits all E46 models, including M3
- Protects subframe and chassis from costly damage
- Factory-like fitment
- Must-have for any and all E46s driven hard on the street or track
Click here for installation instructions and photos.
Made in the USA
Note: We also highly recommend replacing your worn rubber subframe bushings with Powerflex polyurethane or solid aluminum mounts. Never reinstall worn stock rubber mounts. Powerflex uses Street (70A) or Black Series (95A) compound to suit your driving environment. Aluminum is full solid and recommended only for track and race vehicles. New, stiffer mounts will reduce the risk of chassis failure by keeping the subframe secure and not tearing at the chassis mount locations.
BMW Fitments:
3 Series
E46 (99-00) > 323i
E46 (99-00) > 323ci
E46 (01-05) > 325i
E46 (01-06) > 325ci
E46 (01-05) > 325xi
E46 (99-00) > 328i
E46 (99-00) > 328ci
E46 (01-05) > 330i
E46 (01-06) > 330ci
E46 (01-05) > 330xi
E46 (01-06) > M3
