Description
- 5mm shorter engine and 1mm shorter transmission than new factory mounts
- Race-engineered with FEA for worry-free use
- Zero powertrain movement under load
- Shorter than stock for lowered center of gravity
- Track and race use only
- Race proven

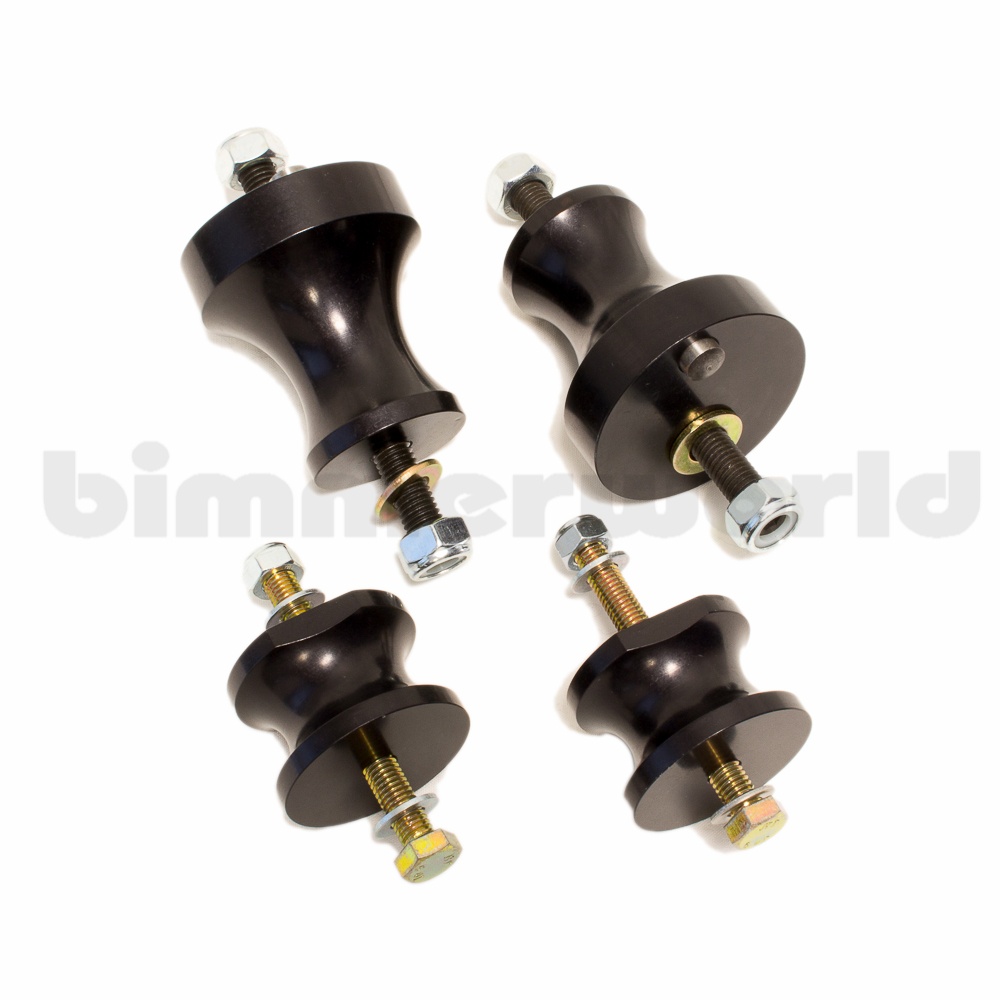

Our Lowering Solid Engine and Transmission Mount Set consists of premium-quality CNC machined aluminum mounts that have undergone FEA and are CAD/CAM manufactured to eliminate any potential weak points. These provide the most solid foundation for your powertrain for zero weight transfer or torque movement on track.
Stock, rubber, or straight urethane mounts are not suitable for real track use. Those mounts will flex under the extreme loads seen on the track, especially when stickier tires and stiffer suspensions are added. Mounts that allow the engine to shift around will allow contact between belts and hoses and other critical areas. We’ve all learned the hard way so you don’t have to experience this shortcoming.
This set of engine mounts are designed 5mm shorter and the transmission mounts are 1mm shorter than stock, effectively lowering the center of gravity and further increasing the performance benefits of these solid mounts.
All necessary hardware is included. Check your sanctioning body’s rules – also available with spacers for stock height.
Note: Solid mounts are recommended for track use only and with reinforced front subframe mounts. Increased vibration can cause accelerated metal fatigue without proper subframe reinforcement.
BMW Fitments:
3 Series
E36 (97-99) > 323ic
E36 (97-99) > 323is
E36 (92-95) > 325i
E36 (92-95) > 325ic
E36 (92-95) > 325is
E36 (96-99) > 328i
E36 (96-99) > 328ic
E36 (96-99) > 328is
E36 (95) > M3 (1995)
E36 (96-99) > M3 (96-99)
3 Series
E46 (99-05) > 320i
E46 (99-00) > 323Ci
E46 (99-00) > 323i
E46 (01-06) > 325Ci
E46 (01-05) > 325i
E46 (99-05) > 328Ci
E46 (99-00) > 328i
E46 (01-06) > 330Ci
E46 (01-05) > 330i
E46 (01-06) > M3
Z Series
Z3 (97-00) > 2.3
Z3 (01-02) > 2.5
Z3 (97-00) > 2.8
Z3 (01-02) > 3.0
Z3 (98-02) > M Coupe
Z3 (98-02) > M Roadster
Z Series
E85 / E86 (03-05) > Z4 2.5 M54
E85 / E86 (03-05) > Z4 3.0 M54
E85 / E86 (06-08) > Z4 3.0i N52
E85 / E86 (06-08) > Z4 3.0si N52
E86 (06-08) > M Coupe
E85 (06-08) > M Roadster
