Description

We can’t say enough about the tremendous value of this E46 323i/325i/328i/330i and M3 track suspension, which gets you a complete coil over shock, spring, and mount kit with track-ready specs right out of the box. While this won’t put you on the podium in competitive club racing, the ISC Track coil overs are an excellent option for beginners or experienced drivers who recognize the limits of the Sport coil overs and don’t want to break their wallets climbing the performance ladder.

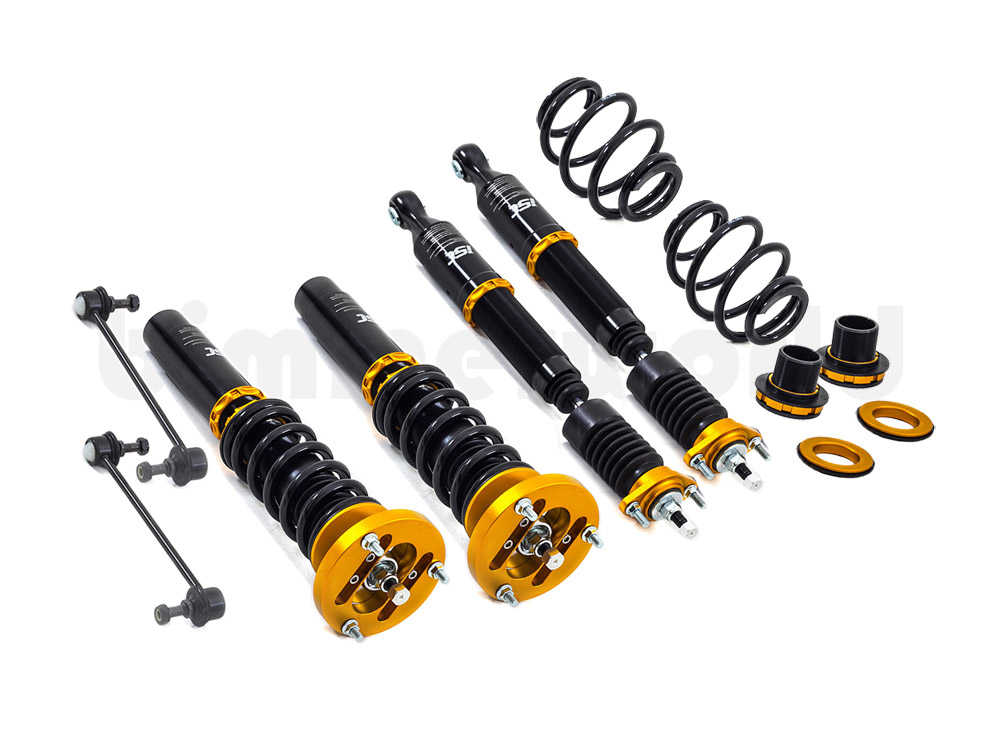

The ISC coil over kit includes:

• Track-spec springs
• Front and rear dampers
• Adjustable front camber plates with spherical bearings
• Rear shock mounts with spherical bearings

The springs used in this kit are typical for track cars used in HPDE or open track events but softer than what we prefer for an all-out competition car. The kit comes standard with 560 lb/in and 672 lb/in 2.5-inch springs (10 kg/mm front and 12 kg/mm rear). We feel that this is a solid base spring rate especially for cars that still see limited street use. ISC uses industry-standard 2.5-inch springs so stiffer springs are available that fall within the range of the damper’s ability.

ISC uses monotube dampers with 32 positions for compression and rebound (not independently adjusted). Shock damping curves have been set by ISC specifically for the springs in the Track coil over kit. With these shock adjustments and spring rates you can have a car that is moderately comfortable on the street but still hugely capable on the track. And unlike many other ‘club sport’ kits, the ISC dampers can be serviced and rebuilt in the USA. From our testing, the ISC Suspension greatly reduces bodyroll, eases weight transfer, and produces razor-sharp handling.

Solid mounts are included with adjustable camber plates in the front and spherical bearing rear shock mounts. Each damper is separate from the shock/strut housing – ride height is adjusted through the body of the shock not the spring. Most other coil overs preload the spring which reduces travel before coil bind. With ISC coil overs, the major ride height is set in the shock body reserving the spring collar for small adjustments. All pieces are either powdercoated or anodized for corrosion protection.

Rear shock mount reinforcements should be ordered and installed at the same time (see link below).

This suspension kit includes a limited lifetime warranty with service in the US.

BMW Fitments:

3 Series
E46 (99-05) > 323Ci
E46 (99-05) > 323i
E46 (99-05) > 325Ci
E46 (99-05) > 325i
E46 (99-05) > 328Ci
E46 (99-05) > 328i
E46 (99-05) > 330Ci
E46 (99-05) > 330i
E46 (99-05) > M3
